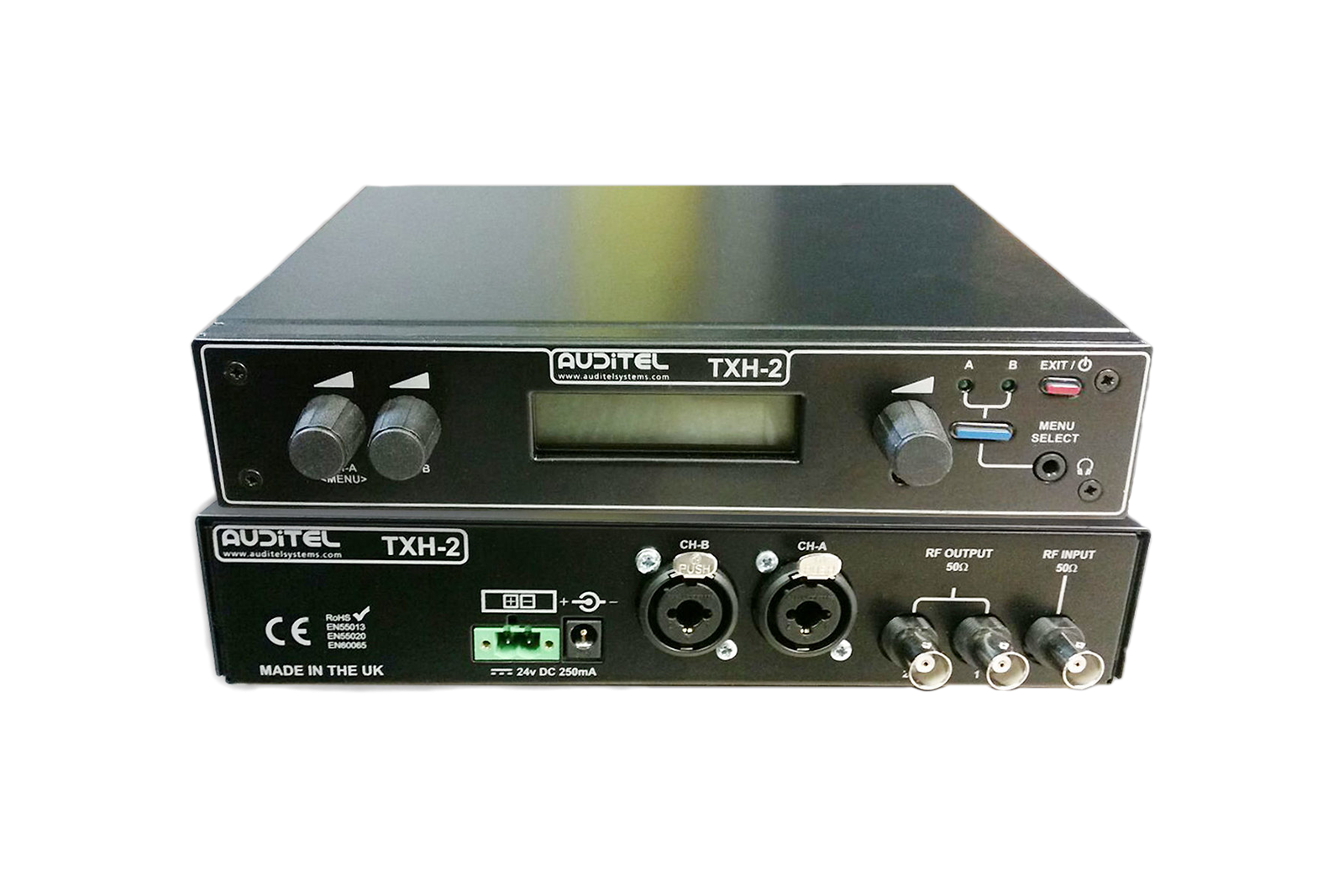

Modulating Transmitter TXH-2

Features:

• Single or two-channel mode
• Stereo/mono operating mode
• Line/microphone input
• Compression feature
• Backlit LCD display
• 48V Phantom Power
• Auto carrier shut-off
• Headphone source control and indication
• Audio level controls
• Linked transmitters
• Power on/off switch with green/red LED indicator
• Dual co-ax outputs
• Complies with IEC 61603 and all corresponding regulations

Tech Specs:

• Number of channels – 2
• Power supply – 24V AC or 24-30V DC (current consumption < 140mA)
• Modulation – FM
• Operating modes – Channel 1&2: selectable 2.3-3.8HZ
• Stereo mode – Channel 1 & 2 preset carriers
• Audio inputs – 2 x XLR / 2 x 6.35mm TRS
• Audio outputs – 1 x 3.5mm TRS
• Channel 1 mono, channel 2 mono or Stereo
• Output power 30mW at 16ohms
• Audio levels – Microphone level: balanced, 300uV minimum, 30mV maximum, 1mV nominal
• Line level – Balanced or unbalanced
• De-emphasis – 50usHZ

Models:

• TXH-2-R 2-channel IR Modulating Transmitter, rack-mounting
• TXH-2-P 2-channel IR Modulating Transmitter, freestanding

2-channel Modulating IR Transmitter for the B4 IR system. Two units can be cascaded together to give 4 channels. Available in freestanding or rackmount version.
